HCIA-三层无线组网
标签
HCIA-Datacom
字数
850 字
阅读时间
5 分钟

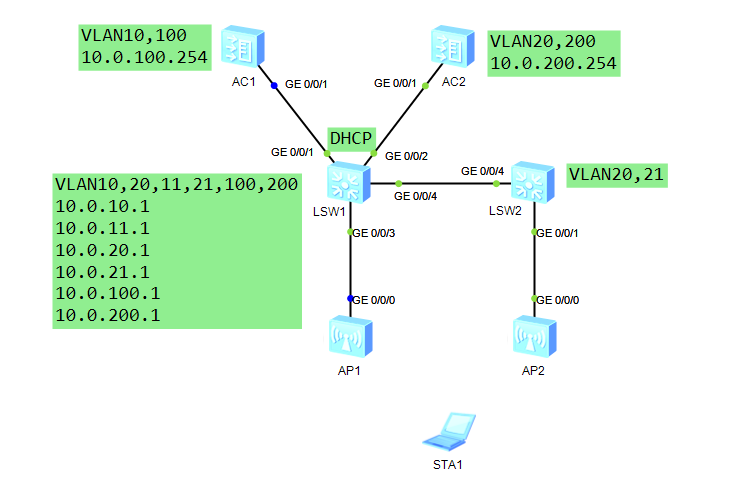

拓扑图
配置说明
AP管理VLAN:VLAN10、20 STA业务VLAN:VLAN11、21 DHCP服务器:S1作为DHCP服务器为AP分配IP地址;S1作为DHCP服务器为STA分配IP地址 AP的IP地址池:10.0.10.0/24、10.0.20.0/24 STA的IP地址池:10.0.11.0/24、10.0.21.0/24 AC的源接口IP地址:VLANIF100（10.0.100.254）、VLANIF200（10.0.200.254） AP组名称:ap-group1、ap-group2 引用模板:VAP模板depart1、depart2 域管理模板名称:default 国家码:中国（CN） SSID模板名称:depart1、depart2 SSID名称:huawei 安全模板名称:depart1、depart2 安全策略:WPA-WPA2+PSK+AES 密码:huawei123 VAP模板名称:depart1、depart2 转发模式:直接转发 业务VLAN:VLAN11、21
配置代码
三层无线组网简单配置说明
这里仅配置：AC1、LSW1以及将AP1加入ap-group1
AC配置
基础网络配置
vlan batch 100
int vlanif 100
ip add 10.0.100.254 24
quit
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 100
quit配置AP组模板
wlan
regulatory-domain-profile name default
country-code cn
quit
ap-group name ap-group1
regulatory-domain-profile default静态导入AP
wlan
ap auth-mode mac-auth
ap-id 0 ap-mac 00e0-fc6a-68e0
ap-name ap1
ap-group ap-group1配置capwap和静态路由
capwap source int vlanif 100
ip route-static 0.0.0.0 0 10.0.100.1LSW1配置
基础网络配置
vlan batch 10 100
int vlanif 10
ip add 10.0.10.1 24
quit
int vlanif 100
ip add 10.0.100.1 24
quit
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 100
quit
int g0/0/3
port link-type trunk
port trunk allow-pass vlan 10 100
port trunk pvid vlan 10
quitDHCP配置
dhcp enable
ip pool ap-group1
gateway-list 10.0.10.1
network 10.0.10.0 mask 255.255.255.0
option 43 sub-option 3 ascii 10.0.100.254
quit
int vlanif 10
dhcp select global

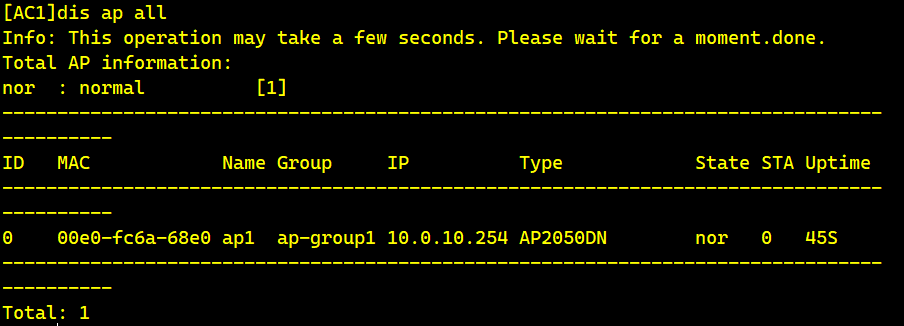

quit配置成功之后在AC上能够看到AP上线消息
完整配置（除上述简单配置）
基础网络
LSW1
vlan batch 11 20 21 200
int vlanif 11
ip add 10.0.11.1 24
quit
int vlanif 20
ip add 10.0.20.1 24
quit
int vlanif 21
ip add 10.0.21.1 24
quit
int vlanif 200
ip add 10.0.200.1 24
quit
int g0/0/2
port link-type trunk
port trunk allow-pass vlan 200
quit
int g0/0/4
port link-type trunk
port trunk allow-pass vlan 20 21
quit
int g0/0/3
port link-type trunk
port trunk allow-pass vlan 11
quitLSW2
vlan batch 20 21
int g0/0/4
port link-type trunk
port trunk allow-pass vlan 20 21
quit
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 20 21
port trunk pvid vlan 20
quitAC2
vlan batch 200
ip route-static 0.0.0.0 0 10.0.200.1
int vlanif 200
ip add 10.0.200.254 24
quit
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 200
quitDHCP配置
在LSW1上进行DHCP服务器配置
ip pool ap-group2
gateway-list 10.0.20.1
network 10.0.20.0 mask 255.255.255.0
option 43 sub-option 3 ascii 10.0.200.254
quit
ip pool ap-sta1
gateway-list 10.0.11.1
network 10.0.11.0 mask 255.255.255.0
quit
ip pool ap-sta2
gateway-list 10.0.21.1
network 10.0.21.0 mask 255.255.255.0
quit
int vlanif 20
dhcp select global
quit
int vlanif 11
dhcp select global
quit
int vlanif 21
dhcp select global
quitAP配置
配置AP组模板，并将AP加入对应AC（AC1已经配置完成，现在配置AC2）
capwap source int vlanif 200
wlan
regulatory-domain-profile name default
country-code cn
quit
ap-group name ap-group2
regulatory-domain-profile default静态导入AP
wlan
ap auth-mode mac-auth
ap-id 1 ap-mac 00e0-fcc0-0100
ap-name ap2
ap-group ap-group2
y
quit

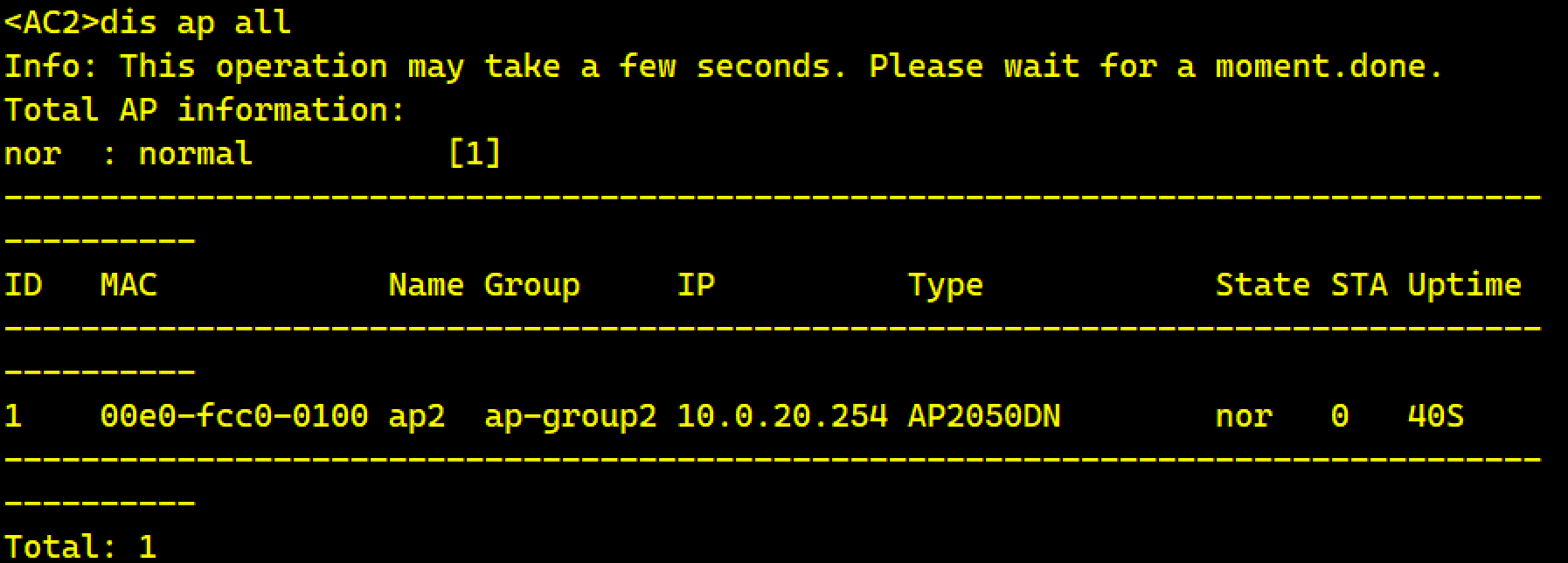

quit在AC2上查看加入的AP
无线射频
LSW1配置
wlan
security-profile name depart1
security wpa-wpa2 psk pass-phrase huawei123 aes
quit
ssid-profile name depart1
ssid huawei
quit
vap-profile name depart1
wlan
vap-profile name depart1
forward-mode direct-forward
service-vlan vlan-id 11
security-profile depart1
ssid-profile depart1
quit
ap-group name ap-group1

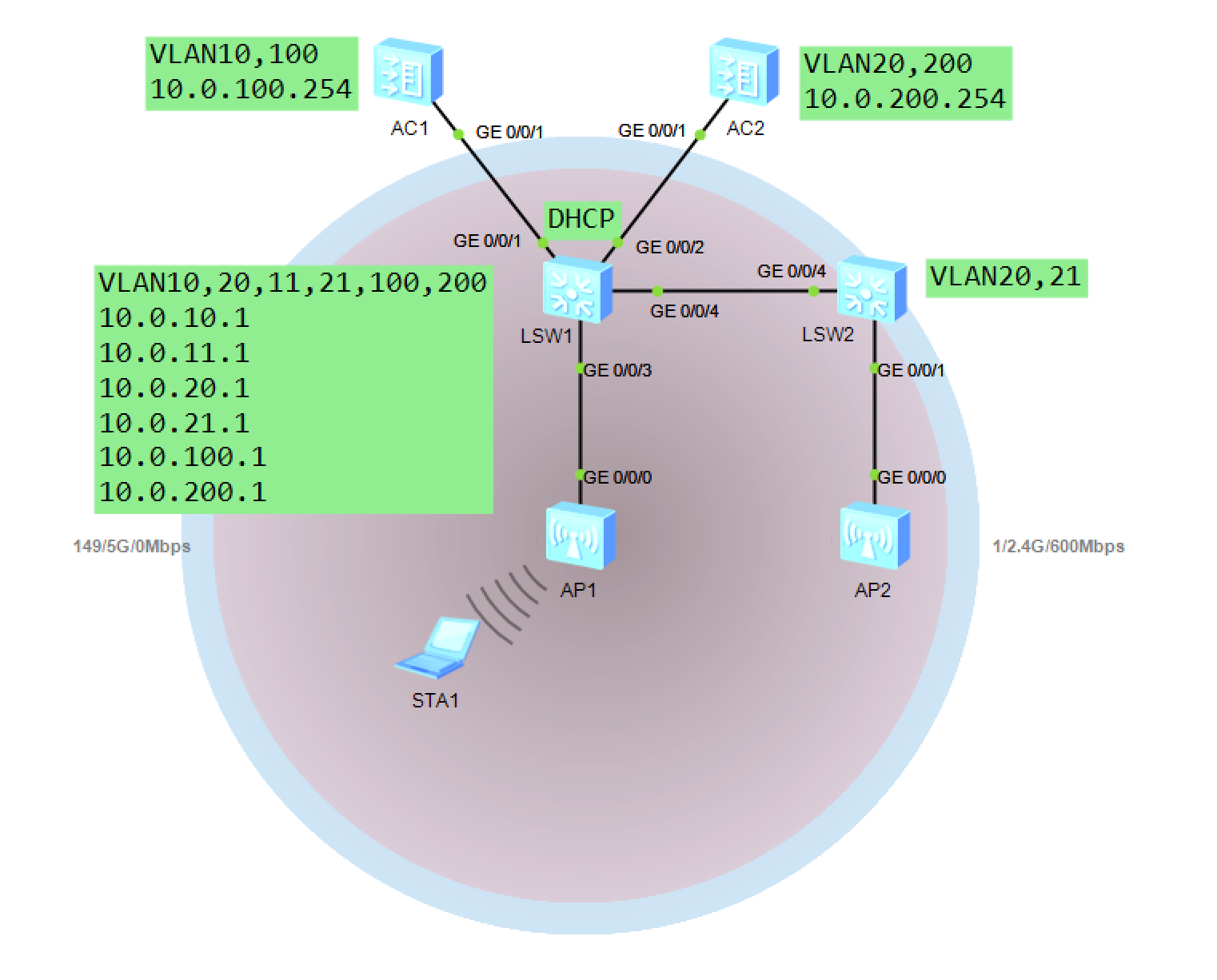

vap-profile depart1 wlan 1 radio allAP1的射频
AC2的配置
wlan
security-profile name depart2
security wpa-wpa2 psk pass-phrase huawei123 aes
quit
ssid-profile name depart2
ssid huawei
quit
vap-profile name depart2
wlan
vap-profile name depart2
forward-mode direct-forward
service-vlan vlan-id 21
security-profile depart2
ssid-profile depart2
quit
ap-group name ap-group2

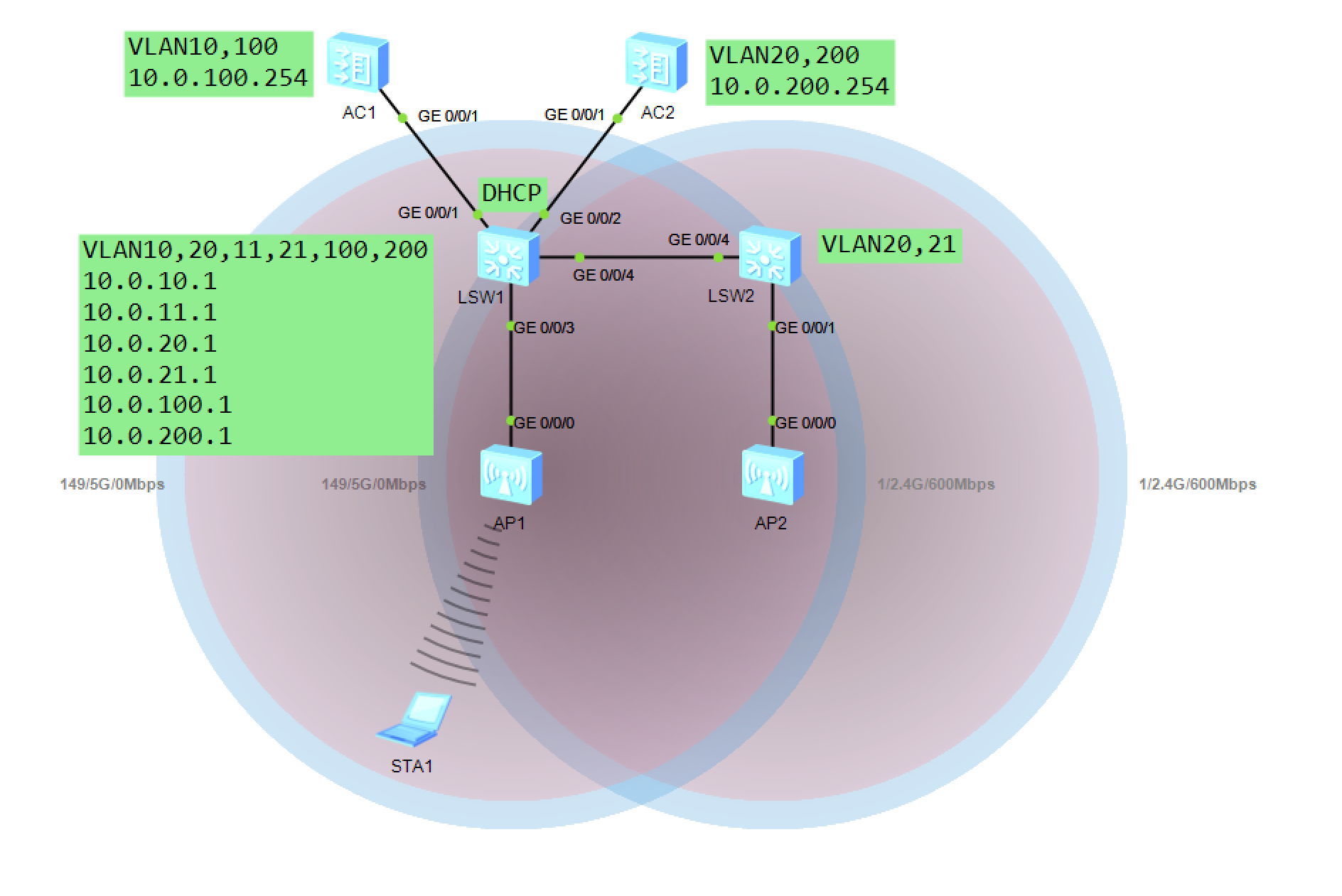

vap-profile depart2 wlan 1 radio all现在AP1和AP2完成射频，现在需要配置三层漫游
三层漫游
在AC1和AC2上配置
wlan
mobility-group name mobility
member ip-address 10.0.100.254
member ip-address 10.0.200.254
quit
quit现在就完成了三层漫游
