IPv4 Over IPv6
字数
183 字
阅读时间
1 分钟
在IPv4发展末期，IPv4如同IPv6前期一样形成信息孤岛，因此需要将IPv4报文封装在IPv6中以实现互访

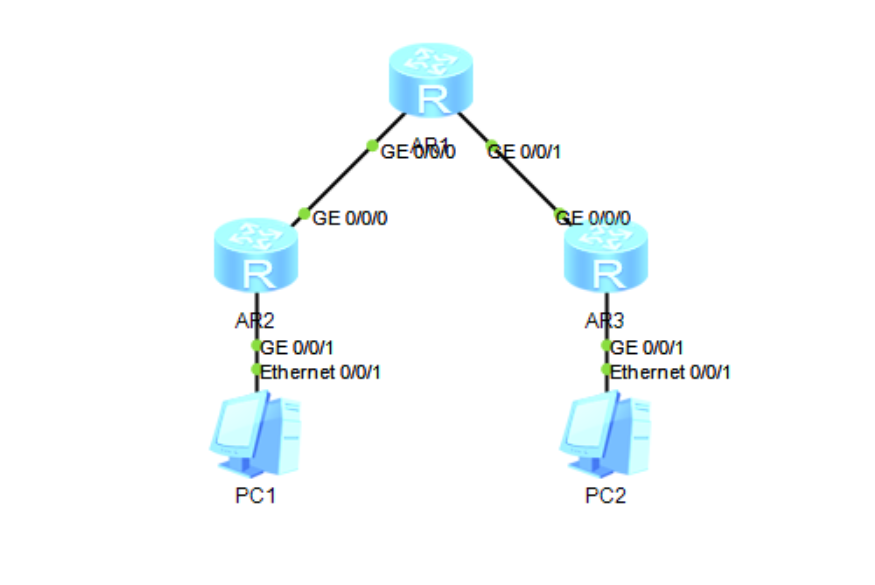

如上图是实验拓扑
实验IP规划
| 设备ID | G0/0/0 | G0/0/1 |
|---|---|---|
| AR1 | 2001::1/96 | 2002::1/96 |
| AR2 | 2001::2/96 | 192.168.1.1/24 |
| AR3 | 2002::2/96 | 192.168.2.1/24 |
代码样例
AR1 AR2 AR3
bash
system
ipv6
int g0/0/0
ipv6 enable
ipv6 add 2001::1 96
int g0/0/1
ipv6 enable
ipv6 add 2002::1 96
quit
ospfv3
router-id 1.1.1.1
int g0/0/0
ospfv3 1 area 0
int g0/0/1
ospfv3 1 area 0bash
system
ipv6
int g0/0/0
ipv6 enable
ipv6 add 2001::2 96
int g0/0/1
ip add 192.168.1.1 24
quit
ospfv3
router-id 2.2.2.2
int g0/0/0
ospfv3 1 area 0bash
system
ipv6
int g0/0/0
ipv6 enable
ipv6 add 2002::2 96
int g0/0/1
ip add 192.168.2.1 24
quit
ospfv3
router-id 3.3.3.3
int g0/0/0
ospfv3 1 area 0
